Spring Boot 3.0 – JWT Authentication with Spring Security using MySQL Database

In Spring Security 5.7.0, the spring team deprecated the WebSecurityConfigurerAdapter, as they encourage users to move towards a component-based security configuration. Spring Boot 3.0 has come with many changes in Spring Security . In this article, we’ll learn how to implement JWT authentication and authorization in a Spring Boot 3.0 application using Spring Security 6 with MySQL Database.


For developers looking to master these new security configurations and effectively implement advanced authentication mechanisms like JWT, enrolling in a specialized Java Backend Development course on Spring Boot Security could be incredibly beneficial. This course would provide detailed insights into the latest security practices in Spring Boot 3.0 and Spring Security 6, including hands-on examples on integrating MySQL for robust application security

Demo Project

Step 1: Create a New Spring Boot Project in Spring Initializr

To create a new Spring Boot project, please refer to How to Create a Spring Boot Project in Spring Initializr and Run it in IntelliJ IDEA . For this project choose the following things

  • Project: Maven
  • Language: Java
  • Packaging: Jar
  • Java: 17

Please choose the following dependencies while creating the project.

  • Spring Web
  • Spring Security
  • MySQL Driver
  • Spring Data JPA
  • Lombok

Additionally, we have added dependencies for JWT also. Below are the dependencies


<dependency>
    <groupId>io.jsonwebtoken</groupId>
    <artifactId>jjwt-api</artifactId>
    <version>0.11.5</version>
</dependency>
<dependency>
    <groupId>io.jsonwebtoken</groupId>
    <artifactId>jjwt-impl</artifactId>
    <version>0.11.5</version>
</dependency>
<dependency>
    <groupId>io.jsonwebtoken</groupId>
    <artifactId>jjwt-jackson</artifactId>
    <version>0.11.5</version>
</dependency>

Below is the complete pom.xml file. Please cross-verify if you have missed some dependencies

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.0.8</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.gfg</groupId>
    <artifactId>springboot3-security</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot3-security</name>
    <description>Demo project for Spring Boot 3 Security</description>
    <properties>
        <java.version>17</java.version>
        <jjwt.version>0.11.5</jjwt.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-api</artifactId>
            <version>${jjwt.version}</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-impl</artifactId>
            <version>${jjwt.version}</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-jackson</artifactId>
            <version>${jjwt.version}</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>3.0.8</version> <!-- Specify the version explicitly -->
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

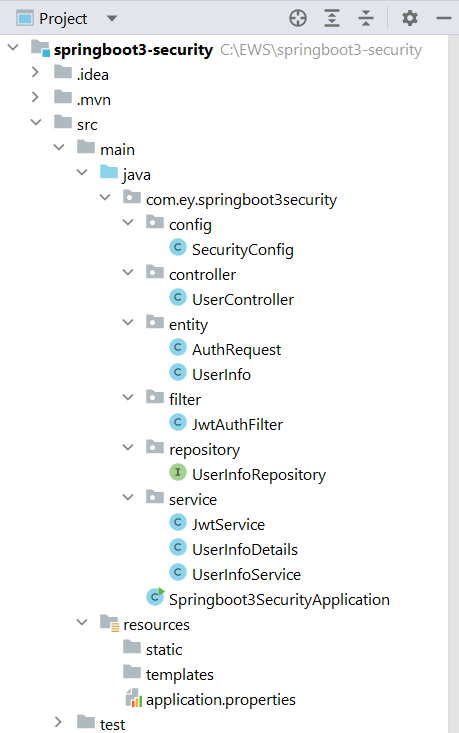

Before moving to the project here is the complete project structure.


Step 2: Create a UserController class

Go to the src > main > java > controller and create a class UserController and put the below code. In this, we have created a simple REST API in our controller class.

import com.ey.springboot3security.entity.AuthRequest;
import com.ey.springboot3security.entity.UserInfo;
import com.ey.springboot3security.service.JwtService;
import com.ey.springboot3security.service.UserInfoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/auth")
public class UserController {
    @Autowired
    private UserInfoService service;
    @Autowired
    private JwtService jwtService;
    @Autowired
    private AuthenticationManager authenticationManager;

    @GetMapping("/welcome")
    public String welcome() {
        return "Welcome this endpoint is not secure";
    }

    @PostMapping("/addNewUser")
    public String addNewUser(@RequestBody UserInfo userInfo) {
        return service.addUser(userInfo);
    }

    @GetMapping("/user/userProfile")
    @PreAuthorize("hasAuthority('ROLE_USER')")
    public String userProfile() {
        return "Welcome to User Profile";
    }

    @GetMapping("/admin/adminProfile")
    @PreAuthorize("hasAuthority('ROLE_ADMIN')")
    public String adminProfile() {
        return "Welcome to Admin Profile";
    }

    @PostMapping("/generateToken")
    public String authenticateAndGetToken(@RequestBody AuthRequest authRequest) {
        Authentication authentication = authenticationManager.authenticate(
            new UsernamePasswordAuthenticationToken(authRequest.getUsername(), authRequest.getPassword())
        );
        if (authentication.isAuthenticated()) {
            return jwtService.generateToken(authRequest.getUsername());
        } else {
            throw new UsernameNotFoundException("Invalid user request!");
        }
    }
}


Step 3: Create a SecurityConfig Class

Go to the src > main > java > config and create a class SecurityConfig and put the below code. This is the new changes brought in Spring Boot 3.0.

import com.ey.springboot3security.filter.JwtAuthFilter;
import com.ey.springboot3security.service.UserInfoService;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.AuthenticationProvider;
import org.springframework.security.authentication.dao.DaoAuthenticationProvider;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.authentication.configuration.AuthenticationConfiguration;
import org.springframework.security.config.annotation.method.configuration.EnableMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableWebSecurity
@EnableMethodSecurity
public class SecurityConfig {
    @Autowired
    private JwtAuthFilter authFilter;

    @Bean
    public UserDetailsService userDetailsService() {
        return new UserInfoService(); // Ensure UserInfoService implements UserDetailsService
    }

    @Bean
    public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
        http
            .csrf(csrf -> csrf.disable()) // Disable CSRF for stateless APIs
            .authorizeHttpRequests(auth -> auth
                .requestMatchers("/auth/welcome", "/auth/addNewUser", "/auth/generateToken").permitAll()
                .requestMatchers("/auth/user/**").hasAuthority("ROLE_USER")
                .requestMatchers("/auth/admin/**").hasAuthority("ROLE_ADMIN")
                .anyRequest().authenticated() // Protect all other endpoints
            )
            .sessionManagement(sess -> sess
                .sessionCreationPolicy(SessionCreationPolicy.STATELESS) // No sessions
            )
            .authenticationProvider(authenticationProvider()) // Custom authentication provider
            .addFilterBefore(authFilter, UsernamePasswordAuthenticationFilter.class); // Add JWT filter

        return http.build();
    }

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder(); // Password encoding
    }

    @Bean
    public AuthenticationProvider authenticationProvider() {
        DaoAuthenticationProvider authenticationProvider = new DaoAuthenticationProvider();
        authenticationProvider.setUserDetailsService(userDetailsService());
        authenticationProvider.setPasswordEncoder(passwordEncoder());
        return authenticationProvider;
    }

    @Bean
    public AuthenticationManager authenticationManager(AuthenticationConfiguration config) throws Exception {
        return config.getAuthenticationManager();
    }
}


Step 4: Create Entity Classes

Go to the src > main > java > entity and create a class UserInfo and put the below code.

import jakarta.persistence.Entity;
import jakarta.persistence.GeneratedValue;
import jakarta.persistence.GenerationType;
import jakarta.persistence.Id;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Entity
@Data
@AllArgsConstructor
@NoArgsConstructor
public class UserInfo {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private int id;
    private String name;
    private String email;
    private String password;
    private String roles;

}

Similarly, create a class AuthRequest and put the below code.

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class AuthRequest {

    private String username;
    private String password;

}


Step 5: Create Filter Class

Go to the src > main > java > filter and create a class JwtAuthFilter and put the below code.

import com.ey.springboot3security.service.JwtService;
import com.ey.springboot3security.service.UserInfoService;
import jakarta.servlet.FilterChain;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.stereotype.Component;
import org.springframework.web.filter.OncePerRequestFilter;
import java.io.IOException;

@Component
public class JwtAuthFilter extends OncePerRequestFilter {
    @Autowired
    private JwtService jwtService;
    @Autowired
    private UserInfoService userDetailsService;

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
        // Retrieve the Authorization header
        String authHeader = request.getHeader("Authorization");
        String token = null;
        String username = null;

        // Check if the header starts with "Bearer "
        if (authHeader != null && authHeader.startsWith("Bearer ")) {
            token = authHeader.substring(7); // Extract token
            username = jwtService.extractUsername(token); // Extract username from token
        }

        // If the token is valid and no authentication is set in the context
        if (username != null && SecurityContextHolder.getContext().getAuthentication() == null) {
            UserDetails userDetails = userDetailsService.loadUserByUsername(username);

           // Validate token and set authentication
            if (jwtService.validateToken(token, userDetails)) {
                UsernamePasswordAuthenticationToken authToken = new UsernamePasswordAuthenticationToken(
                    userDetails,
                    null,
                    userDetails.getAuthorities()
                );
                authToken.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
                SecurityContextHolder.getContext().setAuthentication(authToken);
            }
        }

        // Continue the filter chain
        filterChain.doFilter(request, response);
    }
}


Step 6: Create a Repository Interface

Go to the src > main > java > repository and create an interface UserInfoRepository and put the below code.

import com.ey.springboot3security.entity.UserInfo;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;
import java.util.Optional;

@Repository
public interface UserInfoRepository extends JpaRepository<UserInfo, Integer> {
    Optional<UserInfo> findByEmail(String email); // Use 'email' if that is the correct field for login
}


Step 7: Create Service Classes

Go to the src > main > java > service and create a class JwtService and put the below code.

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import io.jsonwebtoken.io.Decoders;
import io.jsonwebtoken.security.Keys;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.stereotype.Component;

import java.security.Key;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;
import java.util.function.Function;

@Component
public class JwtService {

    // Replace this with a secure key in a real application, ideally fetched from environment variables
    public static final String SECRET = "5367566B59703373367639792F423F4528482B4D6251655468576D5A71347437";

    // Generate token with given user name
    public String generateToken(String userName) {
        Map<String, Object> claims = new HashMap<>();
        return createToken(claims, userName);
    }

    // Create a JWT token with specified claims and subject (user name)
    private String createToken(Map<String, Object> claims, String userName) {
        return Jwts.builder()
                .setClaims(claims)
                .setSubject(userName)
                .setIssuedAt(new Date())
                .setExpiration(new Date(System.currentTimeMillis() + 1000 * 60 * 30)) // Token valid for 30 minutes
                .signWith(getSignKey(), SignatureAlgorithm.HS256)
                .compact();
    }

    // Get the signing key for JWT token
    private Key getSignKey() {
        byte[] keyBytes = Decoders.BASE64.decode(SECRET);
        return Keys.hmacShaKeyFor(keyBytes);
    }

    // Extract the username from the token
    public String extractUsername(String token) {
        return extractClaim(token, Claims::getSubject);
    }

    // Extract the expiration date from the token
    public Date extractExpiration(String token) {
        return extractClaim(token, Claims::getExpiration);
    }

    // Extract a claim from the token
    public <T> T extractClaim(String token, Function<Claims, T> claimsResolver) {
        final Claims claims = extractAllClaims(token);
        return claimsResolver.apply(claims);
    }

    // Extract all claims from the token
    private Claims extractAllClaims(String token) {
        return Jwts.parserBuilder()
                .setSigningKey(getSignKey())
                .build()
                .parseClaimsJws(token)
                .getBody();
    }

    // Check if the token is expired
    private Boolean isTokenExpired(String token) {
        return extractExpiration(token).before(new Date());
    }

    // Validate the token against user details and expiration
    public Boolean validateToken(String token, UserDetails userDetails) {
        final String username = extractUsername(token);
        return (username.equals(userDetails.getUsername()) && !isTokenExpired(token));
    }
}

Similarly, create a class UserInfoDetails and put the below code.

import com.ey.springboot3security.entity.UserInfo;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import java.util.Collection;
import java.util.List;
import java.util.stream.Collectors;

public class UserInfoDetails implements UserDetails {

    private String username; // Changed from 'name' to 'username' for clarity
    private String password;
    private List<GrantedAuthority> authorities;

    public UserInfoDetails(UserInfo userInfo) {
        this.username = userInfo.getName(); // Assuming 'name' is used as 'username'
        this.password = userInfo.getPassword();
        this.authorities = List.of(userInfo.getRoles().split(","))
                .stream()
                .map(SimpleGrantedAuthority::new)
                .collect(Collectors.toList());
    }

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
        return authorities;
    }

    @Override
    public String getPassword() {
        return password;
    }

    @Override
    public String getUsername() {
        return username;
    }

    @Override
    public boolean isAccountNonExpired() {
        return true; // Implement your logic if you need this
    }

    @Override
    public boolean isAccountNonLocked() {
        return true; // Implement your logic if you need this
    }

    @Override
    public boolean isCredentialsNonExpired() {
        return true; // Implement your logic if you need this
    }

    @Override
    public boolean isEnabled() {
        return true; // Implement your logic if you need this
    }
}

Similarly, create a class UserInfoService and put the below code.

import com.ey.springboot3security.entity.UserInfo;
import com.ey.springboot3security.repository.UserInfoRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import java.util.Optional;

@Service
public class UserInfoService implements UserDetailsService {

    @Autowired
    private UserInfoRepository repository;

    @Autowired
    private PasswordEncoder encoder;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        Optional<UserInfo> userDetail = repository.findByEmail(username); // Assuming 'email' is used as username

        // Converting UserInfo to UserDetails
        return userDetail.map(UserInfoDetails::new)
                .orElseThrow(() -> new UsernameNotFoundException("User not found: " + username));
    }

    public String addUser(UserInfo userInfo) {
        // Encode password before saving the user
        userInfo.setPassword(encoder.encode(userInfo.getPassword()));
        repository.save(userInfo);
        return "User Added Successfully";
    }
}


Step 8: Make the following changes in the application.properties file

spring.main.allow-circular-references=true
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url = jdbc:mysql://localhost:3306/university
spring.datasource.username = root
spring.datasource.password = 143@Arpilu
spring.jpa.hibernate.ddl-auto = update
spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.MySQLDialect
spring.jpa.hibernate.naming.physical-strategy=org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl

Test the Application

Now run your application and test it out. Hit the following URL

http://localhost:8080/auth/addNewUser

It will add the user to the database.







Below is our database screenshot.












Now, hit the following URL to generate the token.

http://localhost:8080/auth/generateToken

It will generate the token.







Now using this take we can access our endpoint according to the ROLE. Hit the following URL and put the Bearer token.

http://localhost:8080/auth/user/userProfile

Refer to the screenshot below.
